ErgoRithm

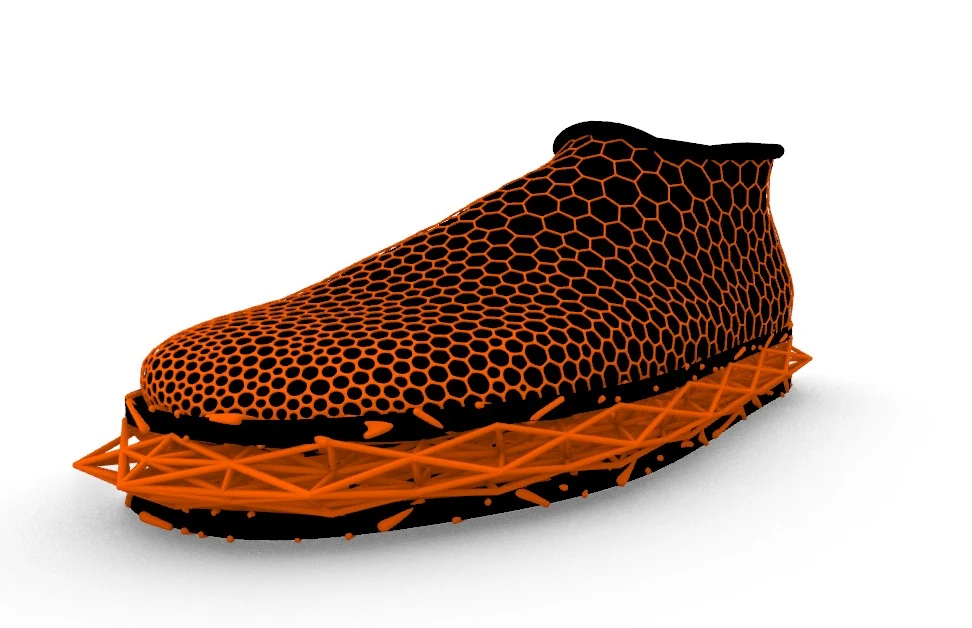

A parametric shoe design. One Grasshopper definition turns a foot scan into a last, a lattice midsole and a Voronoi sock upper, each driven by sliders.
RenderRhino, January 2023.

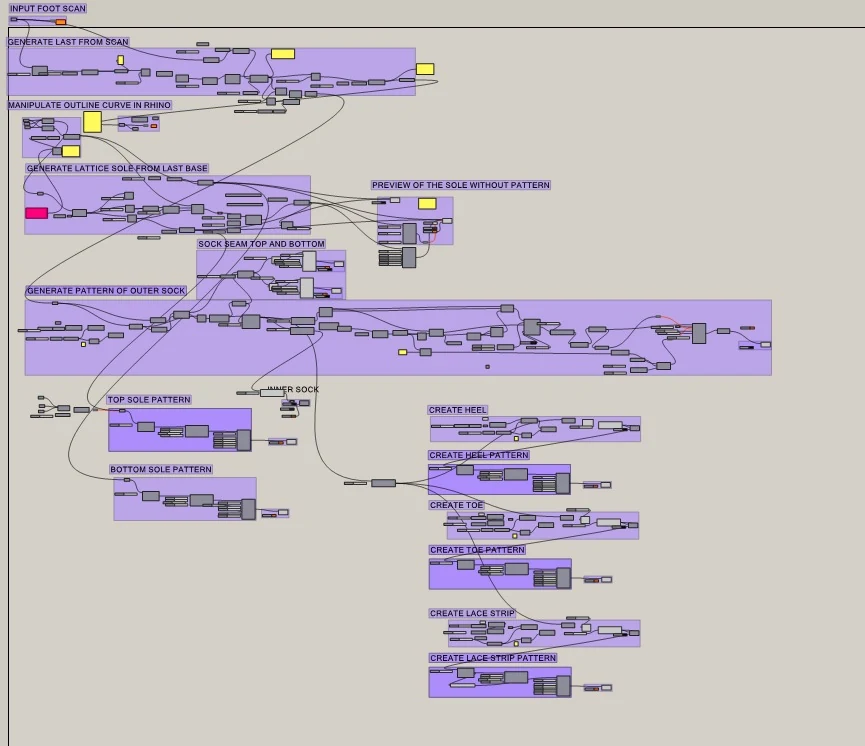

01 · The definition
From scan to shoe.
Instead of modelling one shoe, I built the steps that make a shoe from any foot scan.
Change the scan or move a slider, and the last, the sole lattice and the patterns follow.
The scan is my own foot. As a working student I made ergonomic models for PhD research, so using a 3D scan for a project of my own was a rewarding next step.
- 01Scan to last
A foot scan goes in; the definition builds a last around it.
- 02Outline
The outline curve is adjusted by hand in Rhino, the one manual step.
- 03Lattice midsole
A lattice grows from the base of the last.
- 04Sock upper
A sock wraps the last, with seams at the top and bottom.
- 05Patterns

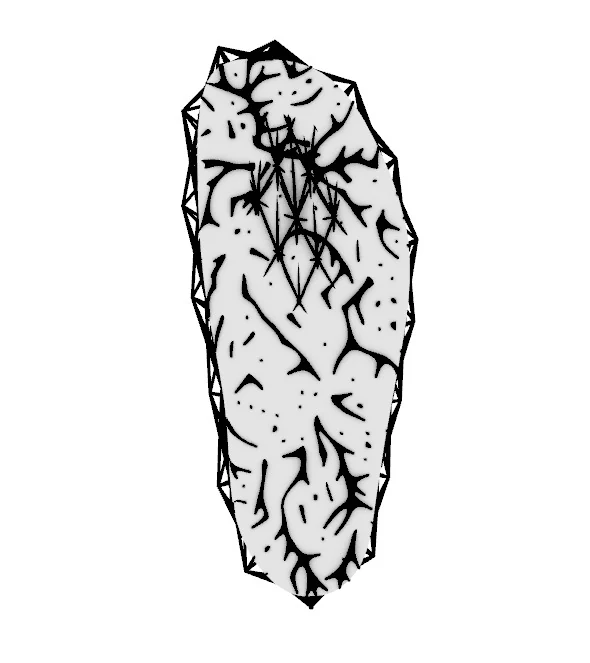

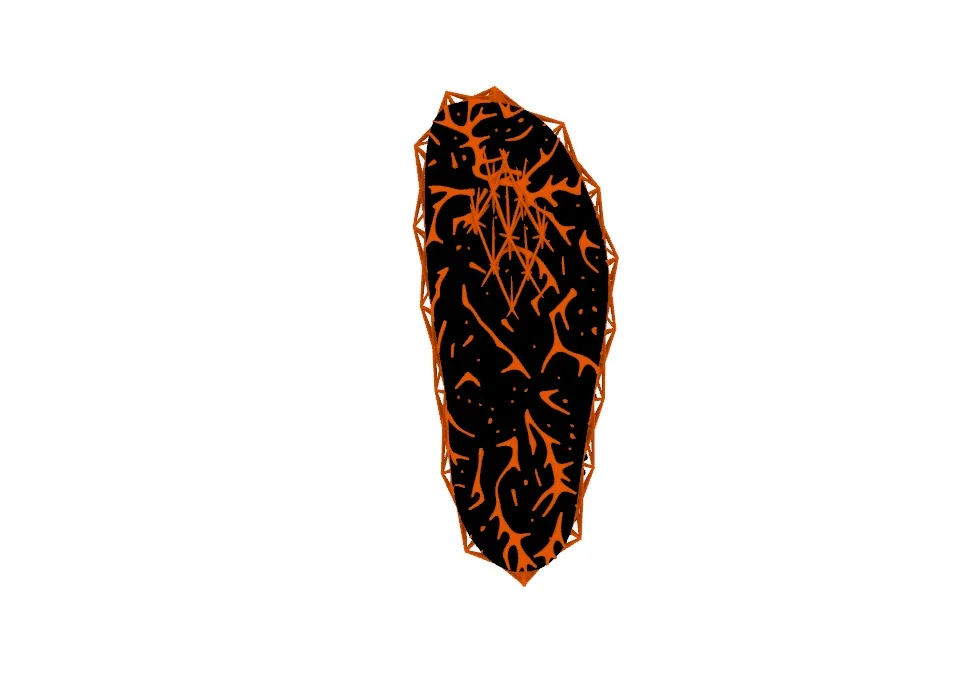

Voronoi patterns for the sock and for the top and bottom of the sole.
- 06Heel, toe, laces
Heel, toe and lace strip, each generated with its own pattern.
02 · Variations
One definition, many shoes.

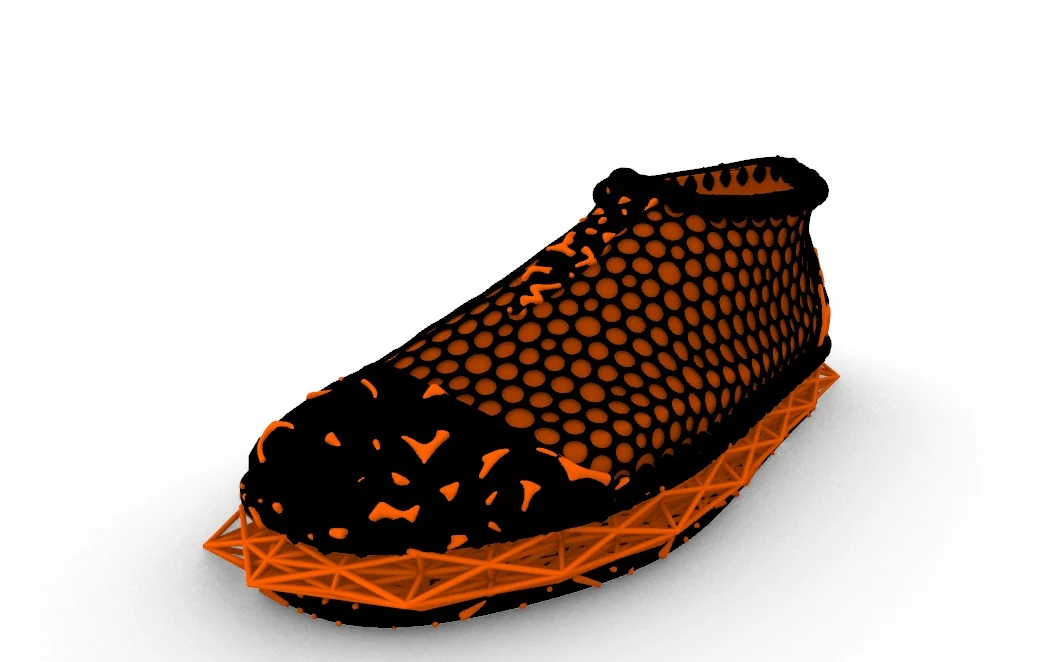

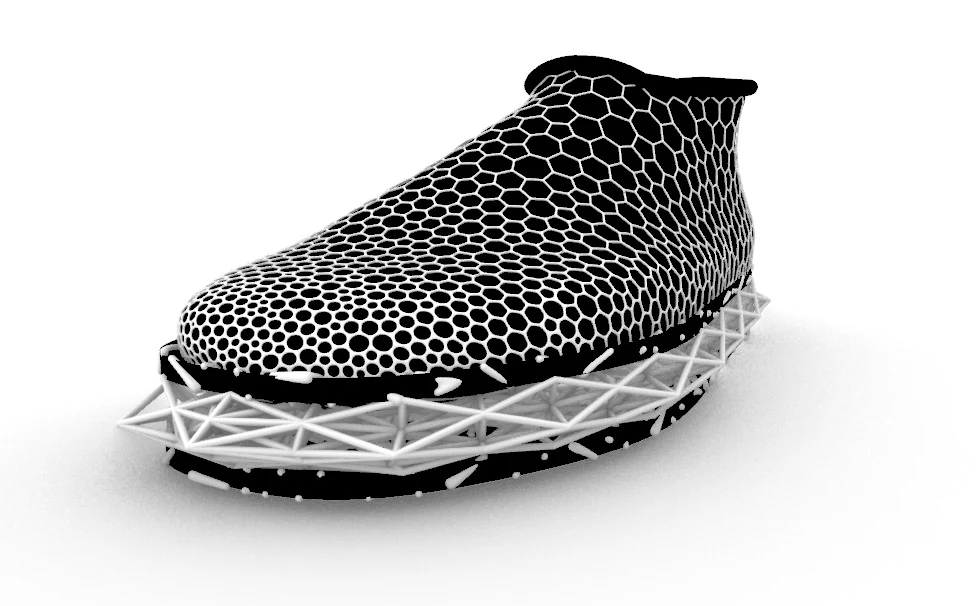

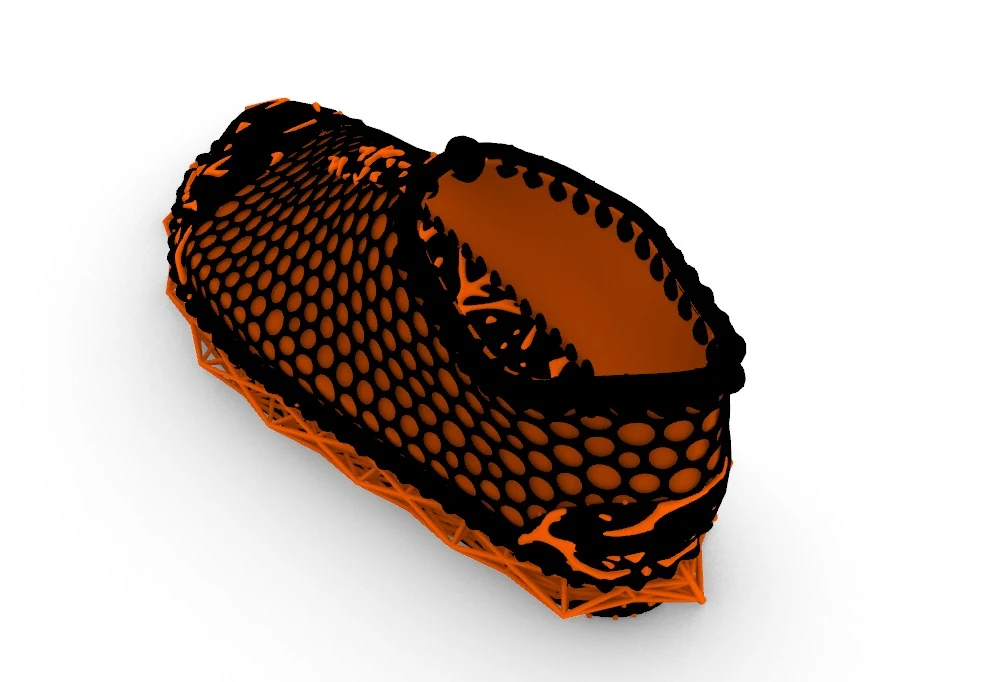

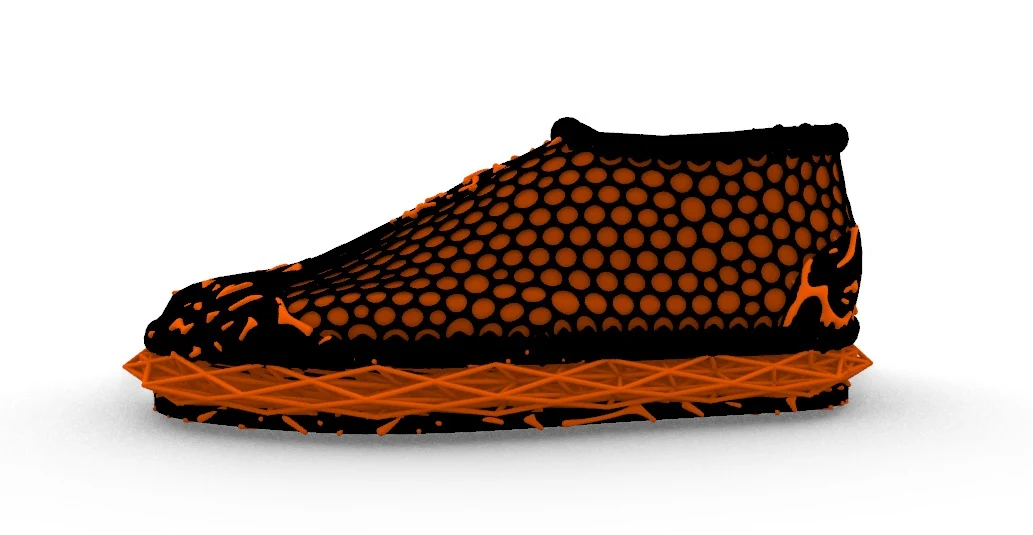

The same definition, rendered with different lattice and pattern settings.

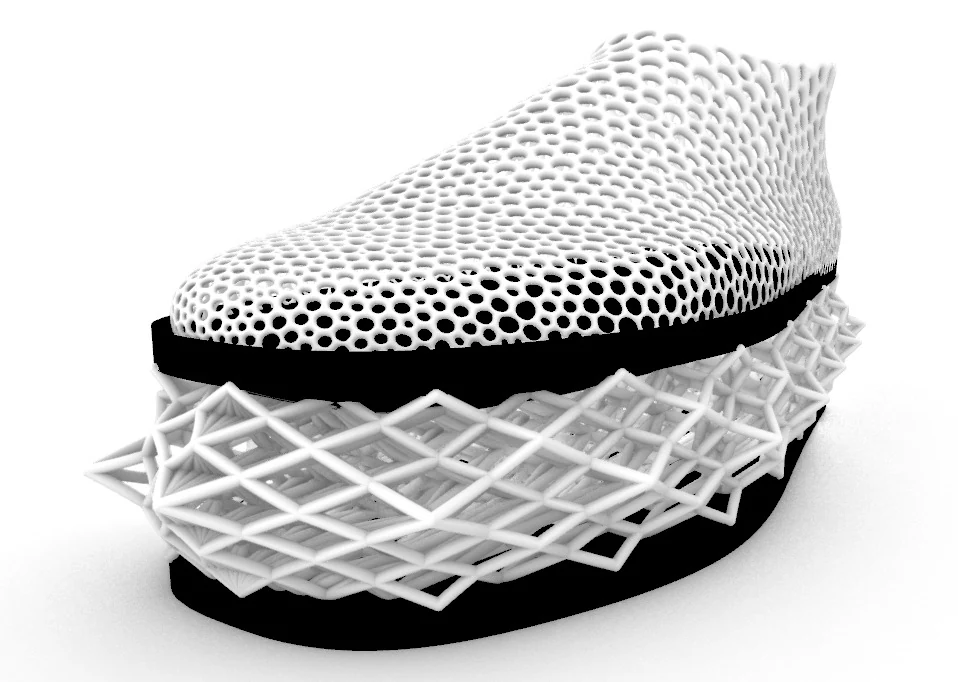

Lattice midsole, white
03 · Outcome
It ran on my own foot.
The definition worked on the scan of my own foot. The test print failed on the printer’s hardware, not the G-code, so this shoe stayed digital. The idea of a shoe made by a printer came back three years later in Technomule.
CourseComputational Design for Digital Fabrication, TU Delft, with Dr. Wolf Song
ToolsRhino, Grasshopper
InputA scan of my own foot
Year2023
